Articulated Contour Rotary Mower
Jake's Take
Best in Class Traction, Improved cut Quality, Quick Adjustment Decks

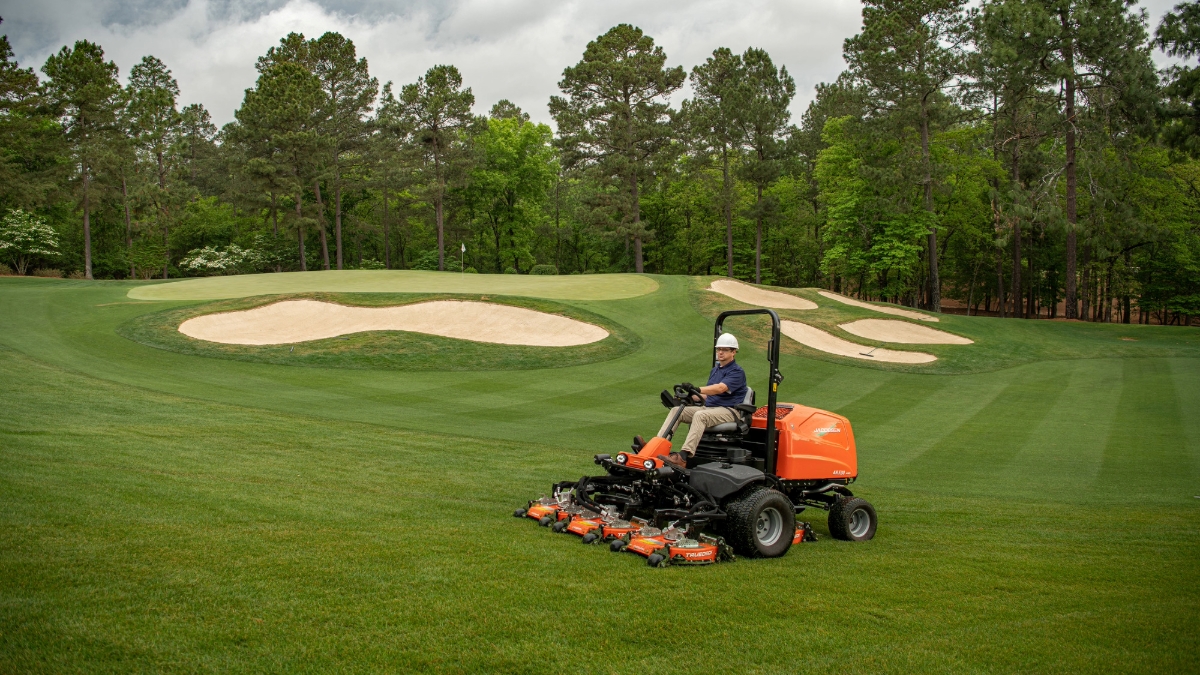

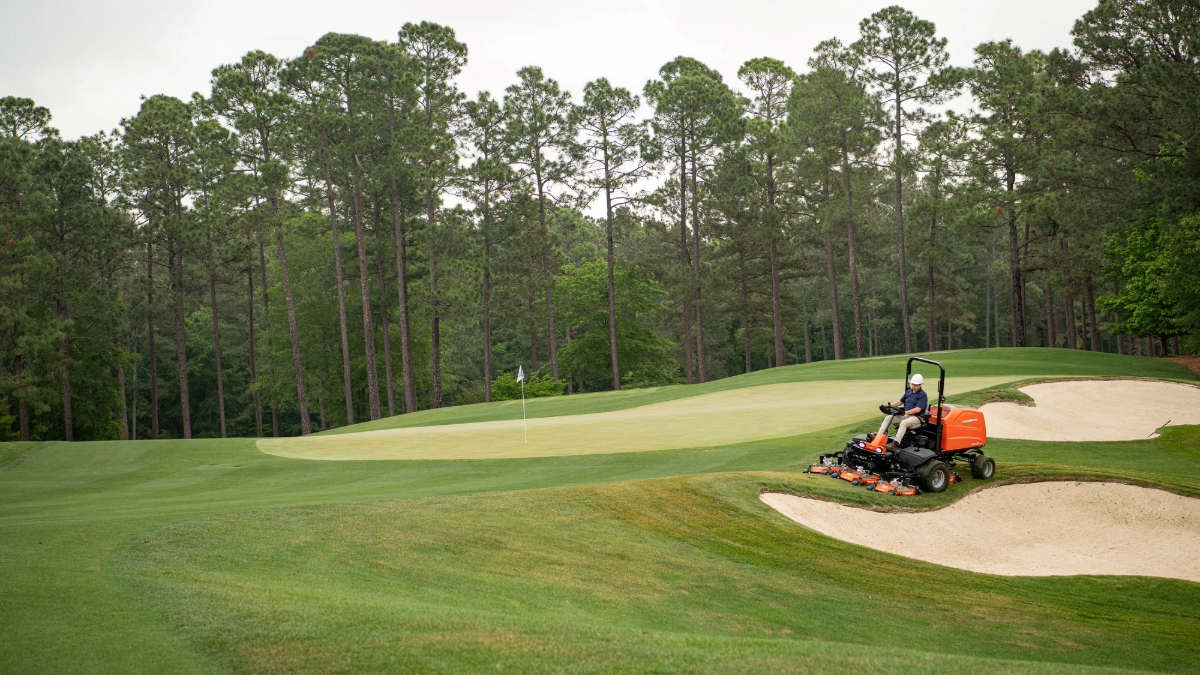

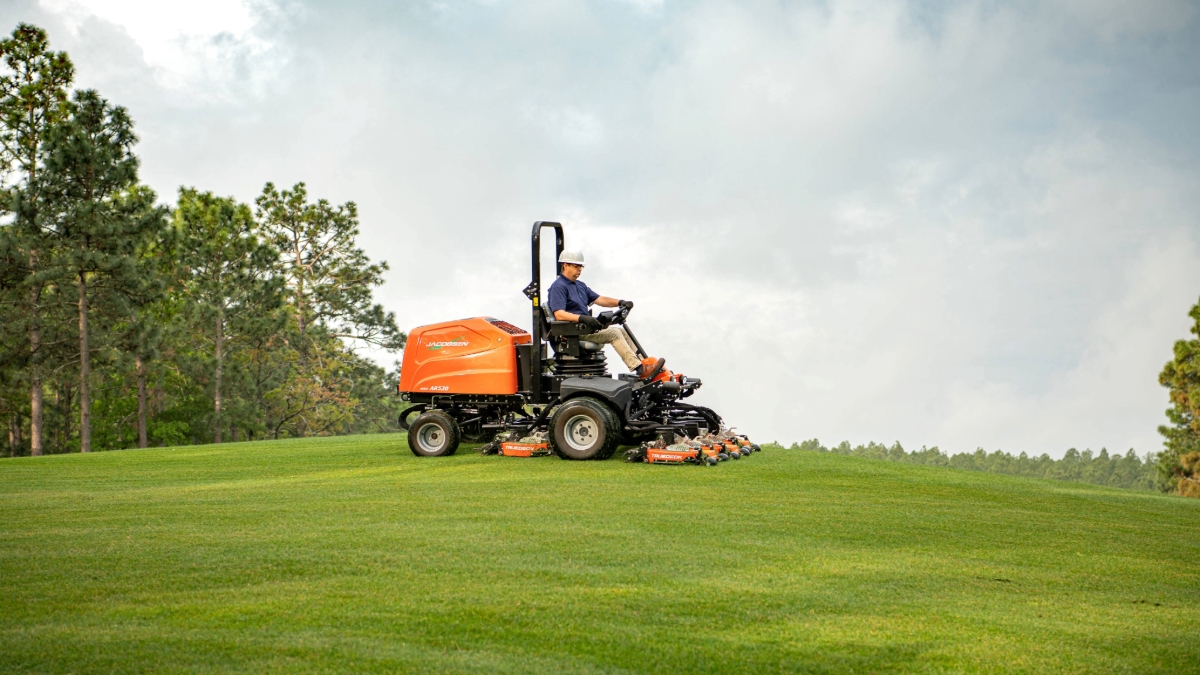

Re-designed from the ground up, the AR530 articulated golf course rough mower is built to give you the best. Improved cut quality, sidehill climbing performance, and operator comfort give you Jake's Signature Cut Trusted by Generations wherever you need it.

Technical Specs

Choose a Section
    Key Attributes
    Decks and Cutting Units
    Traction, Brakes and Speed
    Weight and Dimensions
Key Attributes
Decks and Cutting Units
Traction, Brakes and Speed
Weight and Dimensions
Mower Cutting Width90" (2.3 m)
Mower Height of Cut0.75 - 4.5" (19 - 114 mm) in 0.25" (6 mm) increments
Mower EngineKubota 50.2 HP (37.4 kW) Diesel
Cutting CapacityUp to 5.66 acres/hr at 7 mph (2.29 ha/hr at 11.26 kph) (no overlaps or stops)
Transport Speed12 mph (19.3 kph)
Fuel/Battery Capacity (+Run Time)17 gal. (64.2 L)
Mower Warranty2 Years
Number and Size5 x TRUEDECK™ 23" (58.4 cm) rotary cutting units. Equipped for rear-discharge chute and smooth rear roller. Mulching baffle, non-striping rear roller and rear roller scrapers available.
Blade Material5 x 22.4" (56.8 cm) heat treated alloy combo blades
Deck Lift/LowerHand operated, joystick controlled hydraulic lift system
Weight TransferAdjustable hydraulic weight transfer – automatic electronic activation at operator controls with mow switch. Selectable through control console
Deck Construction10-gauge, heavy duty modular deck construction
Traction DriveSureTrac II™ AWD, a unique parallel hydrostatic system, servo-controlled variable displacement hydro; four high-torque wheel motors; 2WD transport and reverse
Deck DriveFixed displacement, self-lubricating with 1" (2.54 cm) diameter shaft; double sealed bearings
Hydraulic System10 gal. (37.9 L) capacity; hydraulic tank oil level monitor and horn alarm; GreensCare biodegradable fluid; full-flow, 10-micron filter, 40 gpm. Side-by-side radiator/hydraulic oil cooler.
Service BrakesDynamic through traction system
Parking BrakesNo-Maintenance, Integrated Wet Parking Brake
SteeringRear wheel, hydrostatic power steering with tilt adjustable steering wheel
Mowing Speed7 mph (11.3 kph)
Reverse Speed 8.7 mph (14 kph)
Weight3451 lbs. (1565 kg) full fluids
Length137.5" (3.49 m)
Height (Rops Up)91.6" (232.6 cm)
Wheel Base63" (1.6 m)
Transport Width88.6" (2.25 m)
Working Width95.3" (2.42 m)
Fluid Capacities
Engine horsepower may vary due to conditions of specific use. Product available in selected countries.
