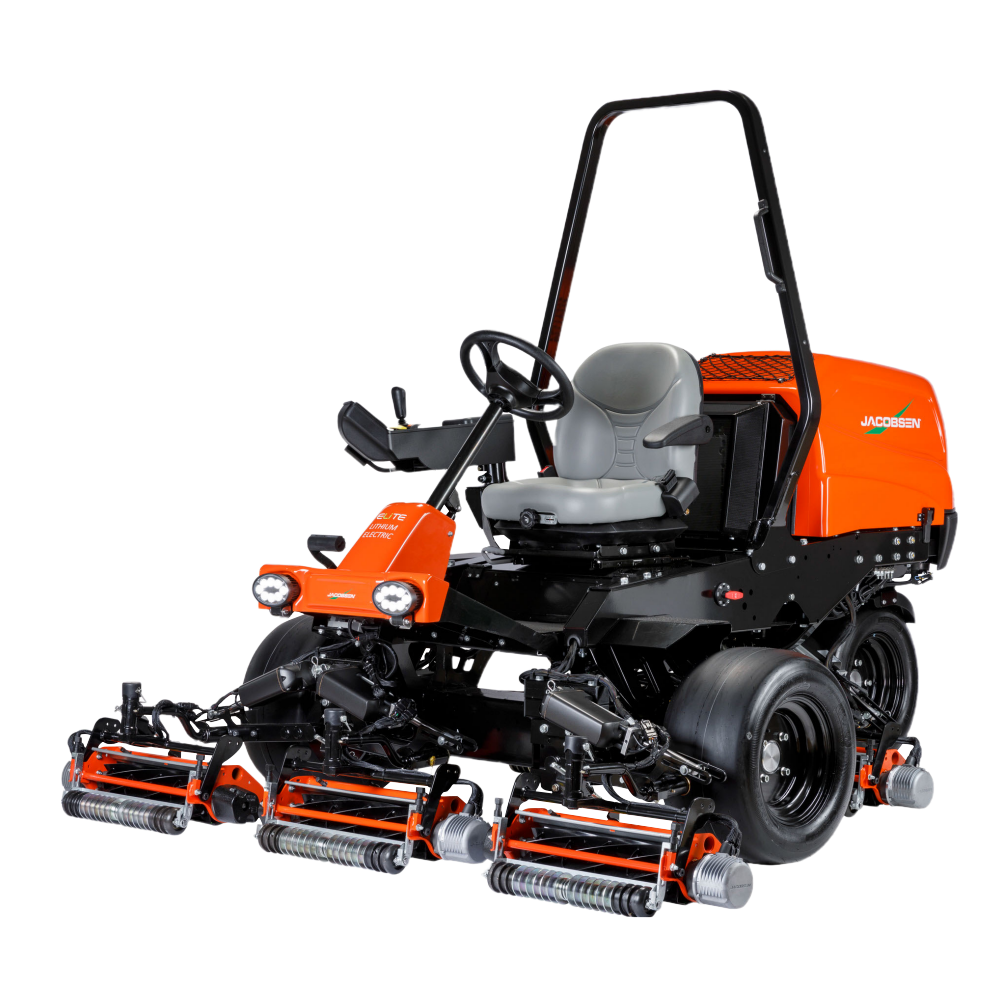

Eclipse 360 ELiTE
Lithium Ride-on Reel Mower
Jake's Take
Our Lithium Green Mower
A hydraulic-free design, reduction in operational costs and proven ELiTE lithium battery powered by Samsung SDI technology makes the Eclipse 360 electric mower the greenest, quietest and highest quality Jake cut available for your golf course.
THIS IS SPARTA: ROTTERDAM STADIUM CUTS CLEAN WITH ECLIPSE ELITE LITHIUM
Watch
Video
ECLIPSE LITHIUM SOCCER MOWER PASSES JUDGEMENT AT THE HAGUE
Watch
Video
Eco Sanctuary Cordova Bay's Greens Love Lithium
Watch
Video
Waterville Golf Links Trials Jake’s ELiTE Greens Mower
Watch
Video
Hogs Head Ireland Goes Green with Jacobsen
Watch
Video
Key Features
Sheet
Jake's Greatest Cutting and Run Range
ELiTE Lithium Battery
No Hydraulic Oil
Unique Swing out Center Cutting Unit for Ease of Service
Technical Specs
Choose a Section
Key Attributes
Reels and Blades
Traction, Brakes and Speed
Weight and Dimensions
Key Attributes
Reels and Blades
Traction, Brakes and Speed
Weight and Dimensions
| Mower Cutting Width | 62" (1.6 m) |
| Mower Height of Cut | 0.062 - 0.438" (1.6 - 11.1 mm) |
| Blades per Reel | 7, 9, 11 or 15 |
| Fuel/Battery Capacity (+Run Time) | Lithium Battery - 250 Ah lithium pack, 12.2 kW/hrs. |
| Mower Engine | Lithium Battery with onboard charger |
| Cutting Capacity | Cut 143K sq. ft (12,449 sq. m) of greens + 6 miles (9.65 km) of transport with groomers and brushes installed |
| Mower Warranty | 2 Years |
| Number and Size | 3 x 22" (55.88 cm) reels; 5" (127 mm) diameter |
| Blade Material | Hardened, high manganese carbon steel |
| Cutting Unit Lift | New Long Life linear actuator |
| Cutting Frequency | 0.036 - 0.250" (0.91 - 6.35 mm) with 15 blade reel, electronically adjustable |
| Traction Drive | Front / 2WD - AC; 4.4 HP (3.3 kW) continuous (Optional 3WD - PM; 3.2 HP (2.4 kW)) |
| Reel Drive | One brushless DC motor per reel 1.3 HP (0.97 kW) continuous |
| Hydraulic System | No Hydraulic Oil |
| Service Brakes | Dynamic regenerative braking system |
| Parking Brakes | Automatic electro-magnetic multi-plate |
| Steering | Variable ratio Drive-by-wire steering with feedback control |
| Mowing Speed | 0 - 5.0 mph (0 - 8.9 kph); electronically adjustable max speed |
| Transport Speed | 0 - 9.0 mph (0 - 14.5 kph) electronically adjustable max speed |
| Tires | 18 x 10.5 x 8 4-ply |
| Weight | 1,598 lbs. (725 kg) with groomers, rear roller brushes, grass boxes and 15 blade reels, charger and aluminum front rollers |
| Length (less catchers) | 101" (2.56 m) (with Catchers) |
| Overall Height including ROPS | 79.3" (2.01 m) |
| Wheel Base | 52" (1.32 m) |
| Transport Width | 67.7" (1.72 m) |
| Working Width | 67.7" (1.72 m) |
| Fluid Capacities | - |
