Eclipse 2 ELiTE
The all-new Eclipse® 2 ELiTE® Walking Mower is where cutting-edge technology meets precision cutting. With a programmable frequency of clip and a whisper-quiet ELiTE lithium powertrain, this mower provides everything you need—say goodbye to noise and harmful fluids, and hello to pristine greens. Get seamless operation and superior results and experience the Jacobsen difference.
Key Features
See why the Eclipse 2 ELiTE provides the greatest cut you'll never hear.
Fully customizable frequency of clip dynamics designed originally for the Eclipse 2.
Virtually silent electric operation with minimal mechanical linkages and 40% less vibration than internal combustion engines.
Verticut conversion capabilities for a richer landscape.
Keeps the cuts close to the contours with a freely floating head.
Accessory Versatility
Unparalleled versatility with no limitations on accessories are just a few of the benefits of the Eclipse 2 ELiTE. Personalize the new all-electric walking mower with countless accessory options, like reels, rollers, bedknife options, verticutter, groomer, and fine bristle brush.
Programmable Frequency of Clip
The Eclipse 2 ELiTE features a precise and programmable frequency of clip system that ensures precise cuts by dynamically adjusting reel speed based on ground speed. Achieve double-cut quality in a single pass, with enhanced control and consistent performance regardless of terrain.

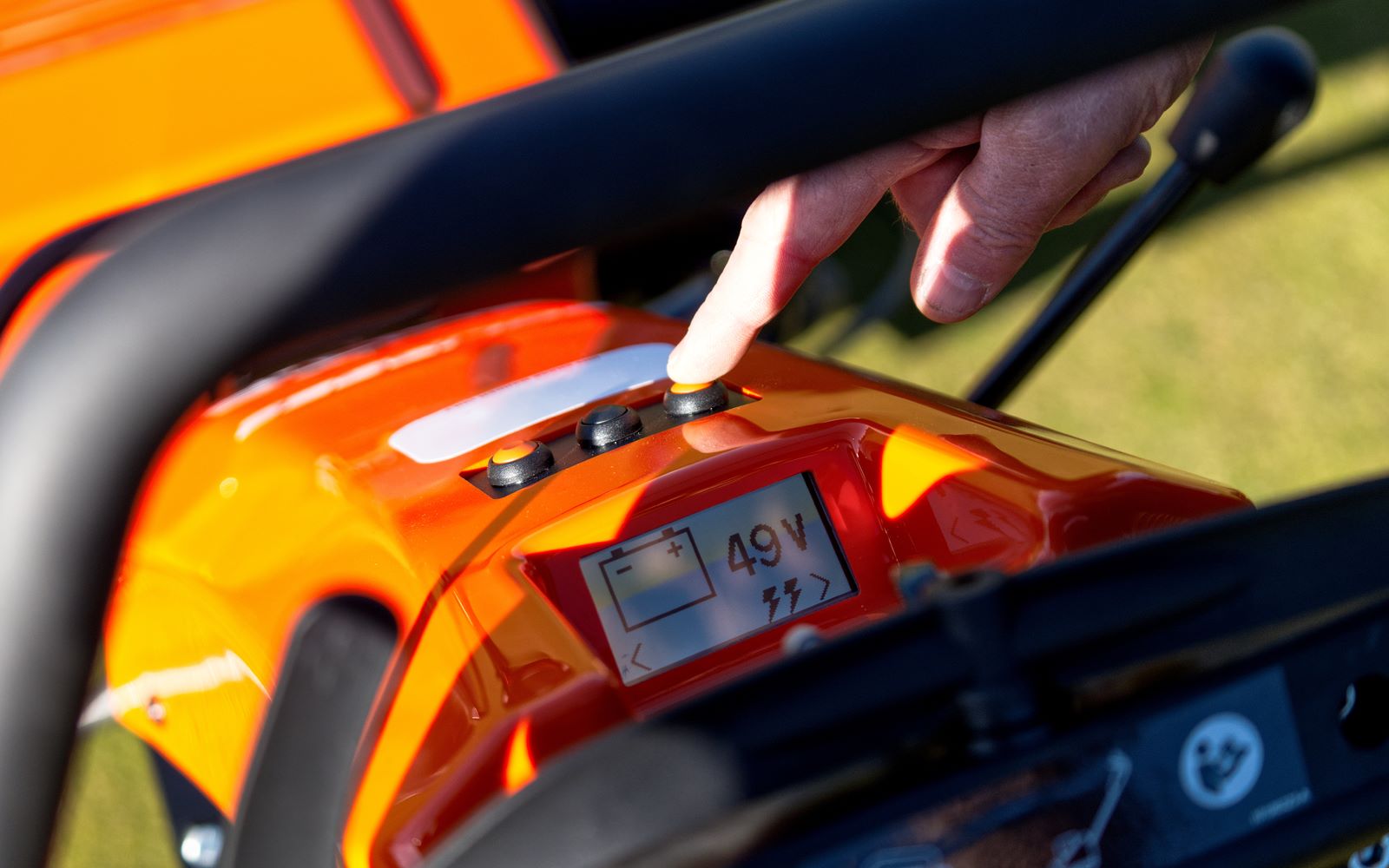

Onboard Controller
Equipped with an advanced onboard controller, the Eclipse 2 ELiTE allows operators to easily monitor battery levels, frequency of clip, reel RPM, mow speed, and display service information. With optimal performance and quick troubleshooting, the Eclipse 2 will keep you mowing for longer.
Experience the fully electric Eclipse 2 ELiTE with whisper-quiet operations, powered by Samsung SDI technology.
Ready to upgrade your turf game? Request a demo and experience the Jake difference.
Technical Specs
| Mower Cutting Width | 18", 22" or 26" (45.7 cm, 55.9 cm or 66 cm) |
| Mower Height of Cut | 0.062" - 0.438" (1.57 mm - 11.33 mm) |
| Blades per Reel | 7, 11 or 15 |
| Mower Engine | Samsung 50AH Lithium Battery |
| Fuel/Battery Capacity | 50AH |
| Power | N/A |
| Sound Level | N/A |
| Mower Warranty | N/A |
| Blade Material | Hardened, high manganese carbon steel |
| Reel Speed | Electronically controlled, 2200 RPM maximum |
| Frequency of Clip | Programmable electronically controlled Frequency of Clip based on actual machine speed |
| Mower Drive System | Samsung SDI Lithium Battery |
| Traction Drive | 7.75" (19.68 cm) diameter machine smoothed aluminum drum driven via a brushless DC motor and synchronous belt |
| Operator Presence Control | Standard InCommandâ„¢ operator controls (Traction and Reel) with integrated Operator Presence Control |
| Differential | Full automotive type, housed in traction drum |
| Traction Drum | 7.75" (19.68 cm) diameter smooth machined aluminum |
| Brakes | Lever actuated hub brake with parking lock |
| Transport Wheels | N/A |
| Mowing Speed | Electronically controlled and programable 0 - 3.8 mph (6.12 kph) max |
| Weight | 18": 213 lbs. (97 kg), 22": 229 lbs. (104 kg), 18" floating head: 248 lbs. (113 kg), 22" floating head: 252 lbs. (114 kg) (all weights are with Catcher, grooved steel roller and Kickstand) |
