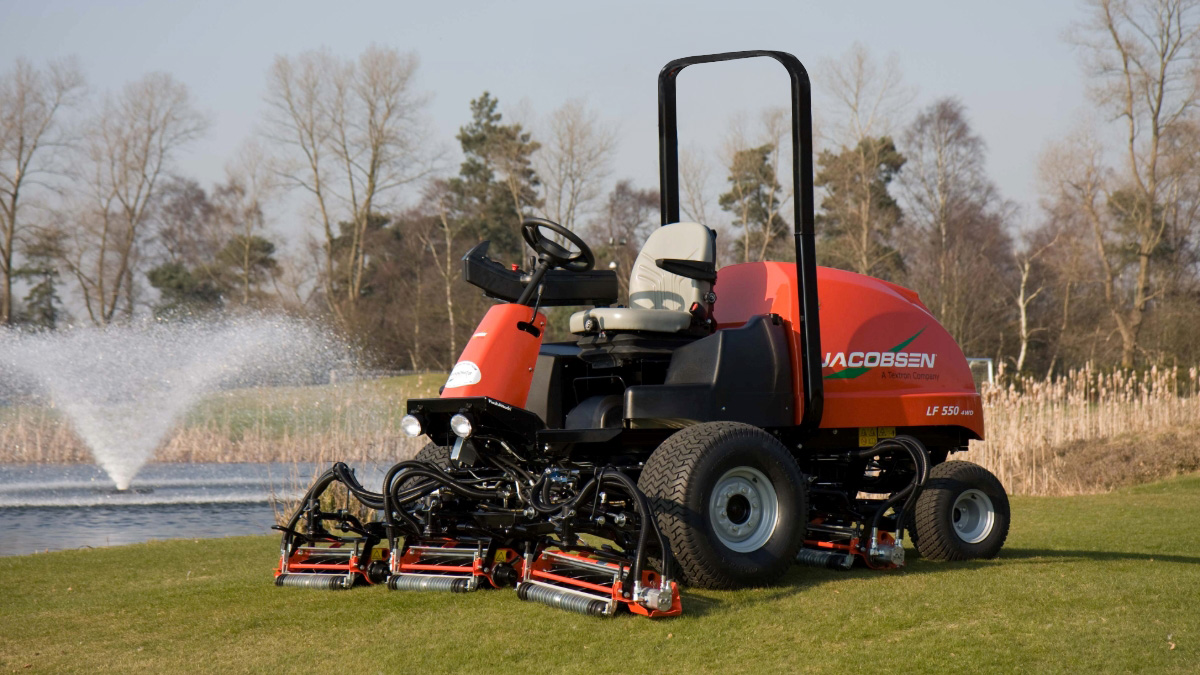

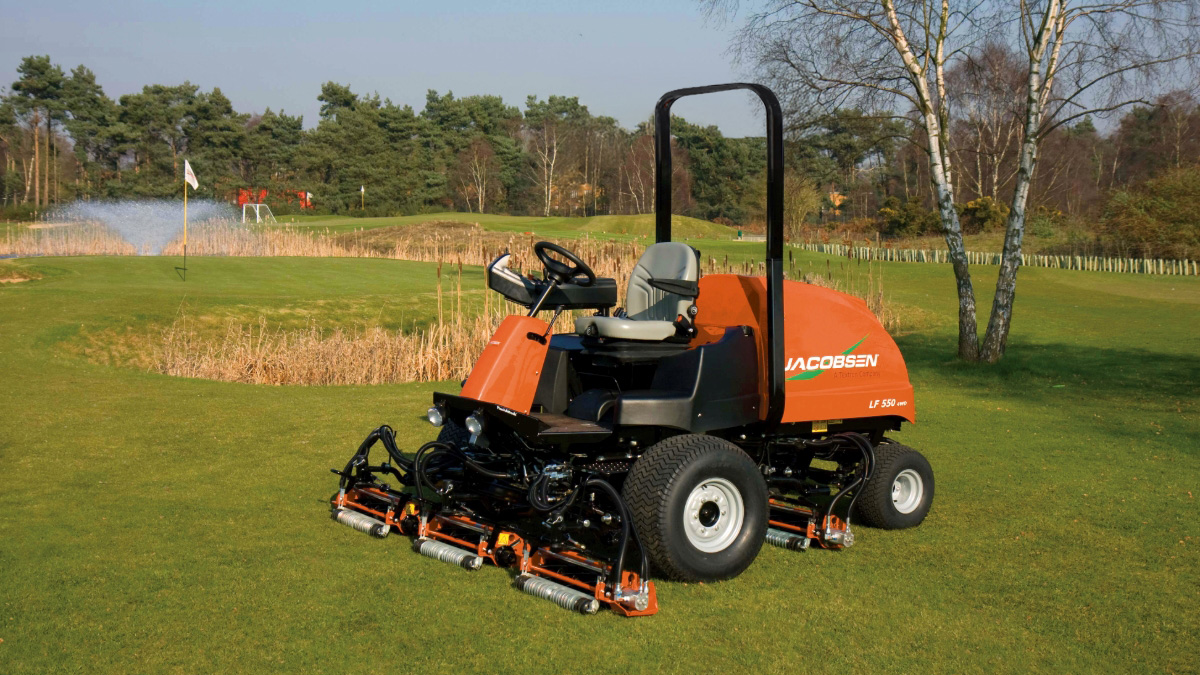

Jacobsen LF550 Reel mower

LF550

High Performance Ride-on Reel Mower

Jake's Take

Our Light and Powerful Wide Area Sports Turf Machine

The LF550 ensures a consistent cut on sports turf, including elite level soccer, football, baseball, field hockey, and rugby. Programmable mowing and transport speeds guarantee you get a consistent cut, and active maintenance diagnostics prevent unnecessary disruptions to keep you working.

LF550

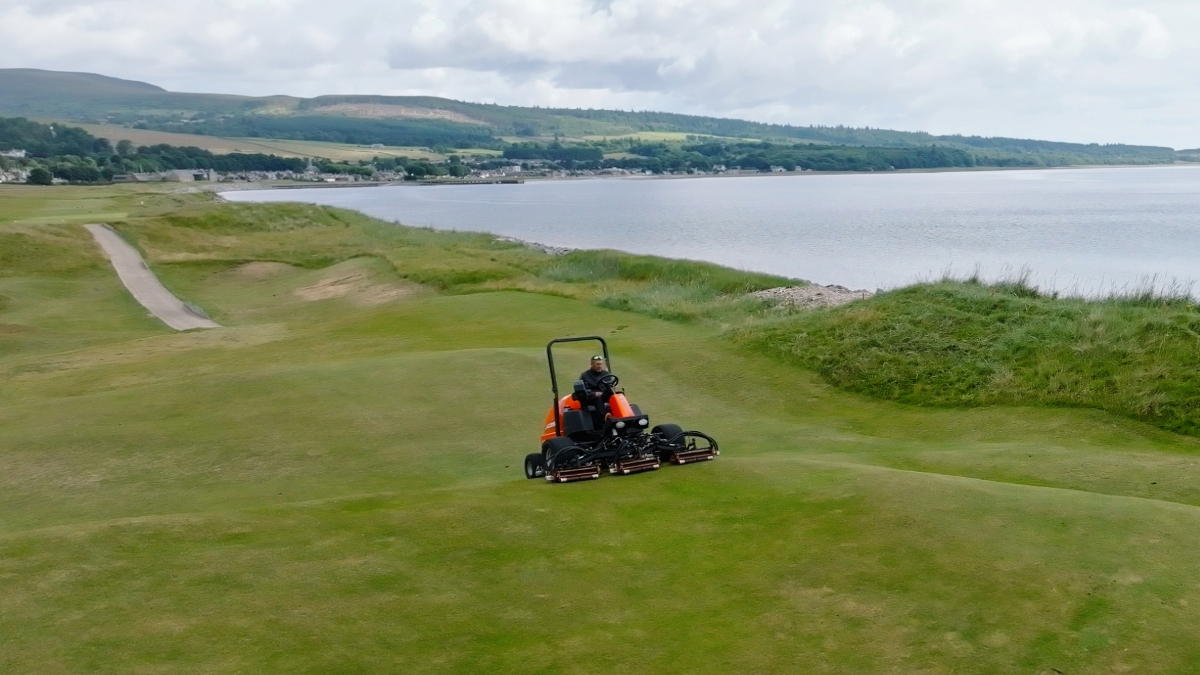

LF550 & Jake at Bay Hill

Watch

Key Features

Jacobsen LF570 Mower

Jake's Signature Cut

Jacobsen LF570 Mower

Powerful, Trustworthy Engine

Jacobsen LF570 Mower

Fully Adjustable Mow Speed

Jacobsen LF570 Mower

Outstanding Fuel Capacity

Technical Specs

Choose a Section

Key Attributes

Reels and Blades

Traction, Brakes and Speed

Weight and Dimensions

Key Attributes

Reels and Blades

Traction, Brakes and Speed

Weight and Dimensions

Mower Cutting Width	100" (2.54 m)
Mower Height of Cut	0.375 - 0.75" (9.5 - 19 mm), Available high-cut kit raises cutting height to 1.187" (30.2 mm)
Cutting Reels	5 x 5" (12.7 cm) diameter x 22" (55.9 cm)
Mower Engine	Kubota 37.5 HP (28 kW) diesel, Kubota® 50.2 HP (37.4 kW) diesel
Cutting Capacity	Up to 8 acres (3.24 hectares) per hour at 8 mph (12.9 mph) (no overlaps or stops).
Fuel/Battery Capacity (+Run Time)	37.5 HP - 1.08 GPH (4.08 LPH)* , 50 HP - 1.4 GPH (5.3 LPH)* (*assuming 50% load)
Transport Speed	Selectable up to 12 mph (19.3 km/h)
Mower Warranty	2 Years

Number and Size	7 or 9 heavy section fairway blades.
Blade Material	Hardened, high manganese carbon steel
Cutting Unit Lift	Hand operated, joystick controlled hydraulic lift system, one-touch lift/lower control for all reels.

Traction Drive	Variable displacement, electronically controlled hydrostatic drive; 4WD models: SureTrac™ parallel-cross-series traction system, four high-torque wheel motors, 2WD in reverse.
Reel Drive	Fixed displacement hydraulic motors with FlashAttach quick disconnect coupled reel motors. Standard on-board backlapping.
Hydraulic System	14 gal. (53 L) capacity; hydraulic tank oil level monitor and horn alarm; GreensCare biodegradable fluid; full-flow, 10-micron filter. Side-by-side radiator/hydraulic oil cooler.
Service Brakes	Dynamic braking through traction system
Parking Brakes	Automatic, wet parking brakes integrated in front wheel motors.
Steering	Rear wheel, hydrostatic power steering with tilt adjustable steering wheel.
Mowing Speed	Selectable Up to 11 mph (19 km/h)
Reverse Speed	Selectable up to 5 mph (8 km/h)

Weight	2wd: 3036 lbs. (1377 kg), 4wd: 3367 lbs. (1527 kg), 2wd High HP: 3282 lbs. (1489 kg), 4wd High HP: 3613 lbs. (1639 kg)
Length (less catchers)	108" (2.74 m)
Overall Height (including ROPS)	88" (2.23 m)
Wheel Base	58" (1.5 m)
Transport Width	87" (2.2 m)
Working Width	115" (2.92 m)

Engine horsepower may vary due to conditions of specific use. Product available in selected countries.
