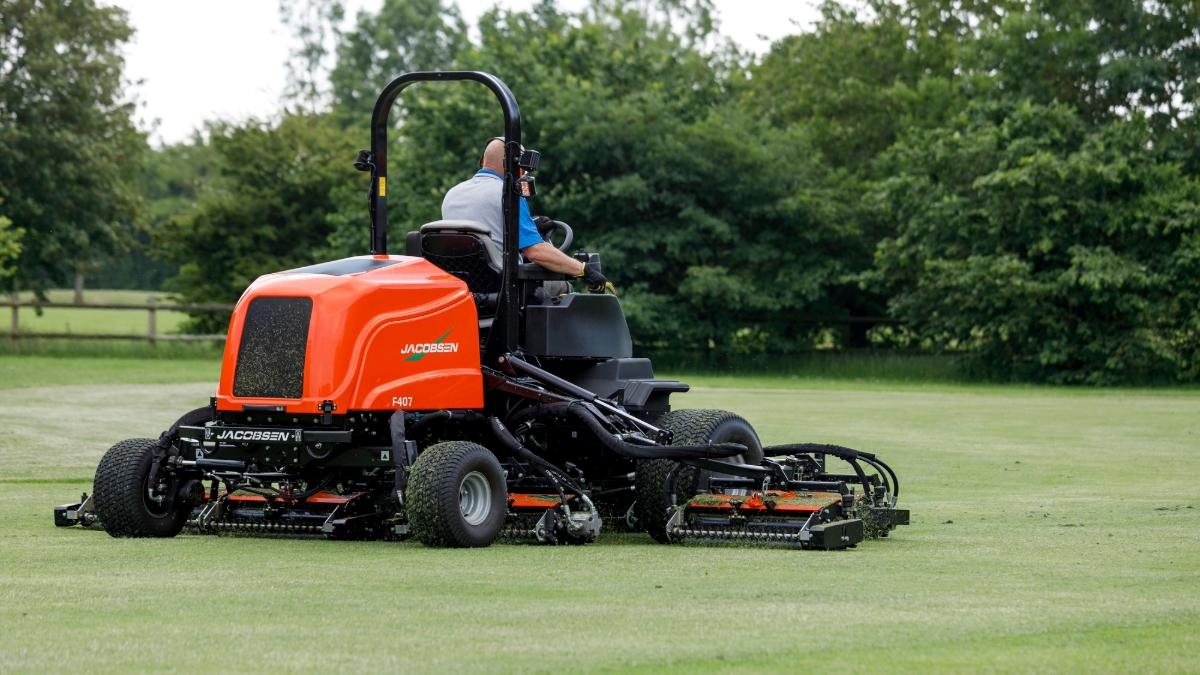

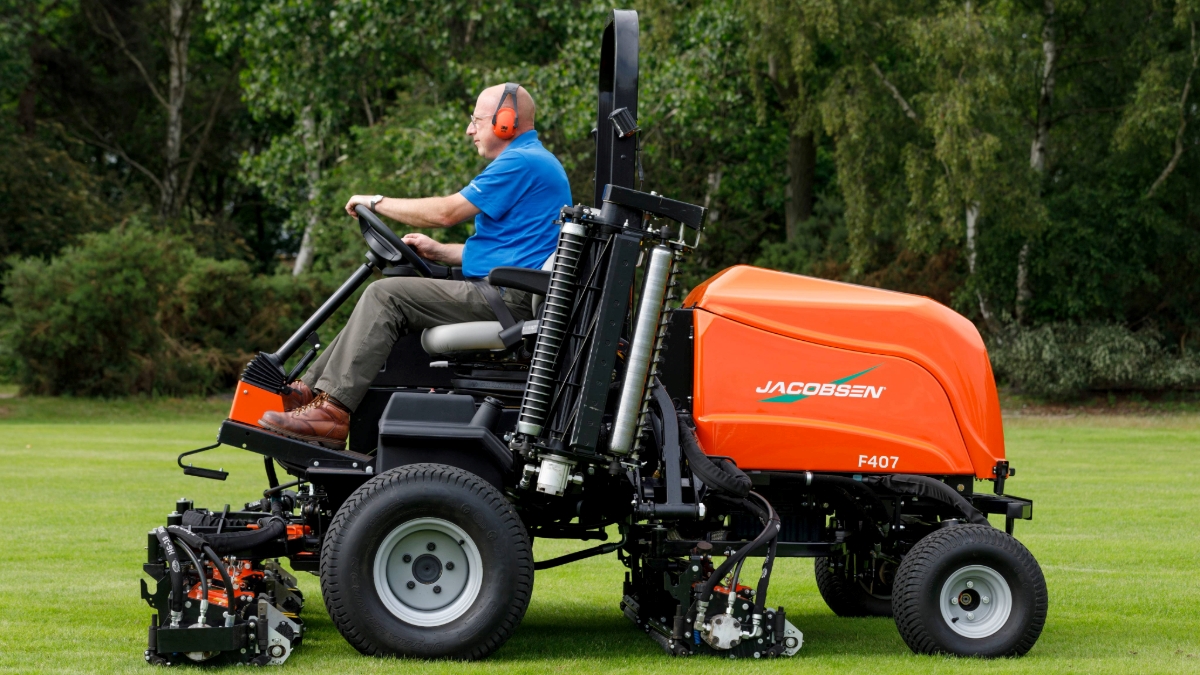

F407
Super-Wide Ride-On Reel Mower
Jake's Take
Robust, powerful, productive, with a quality cut.

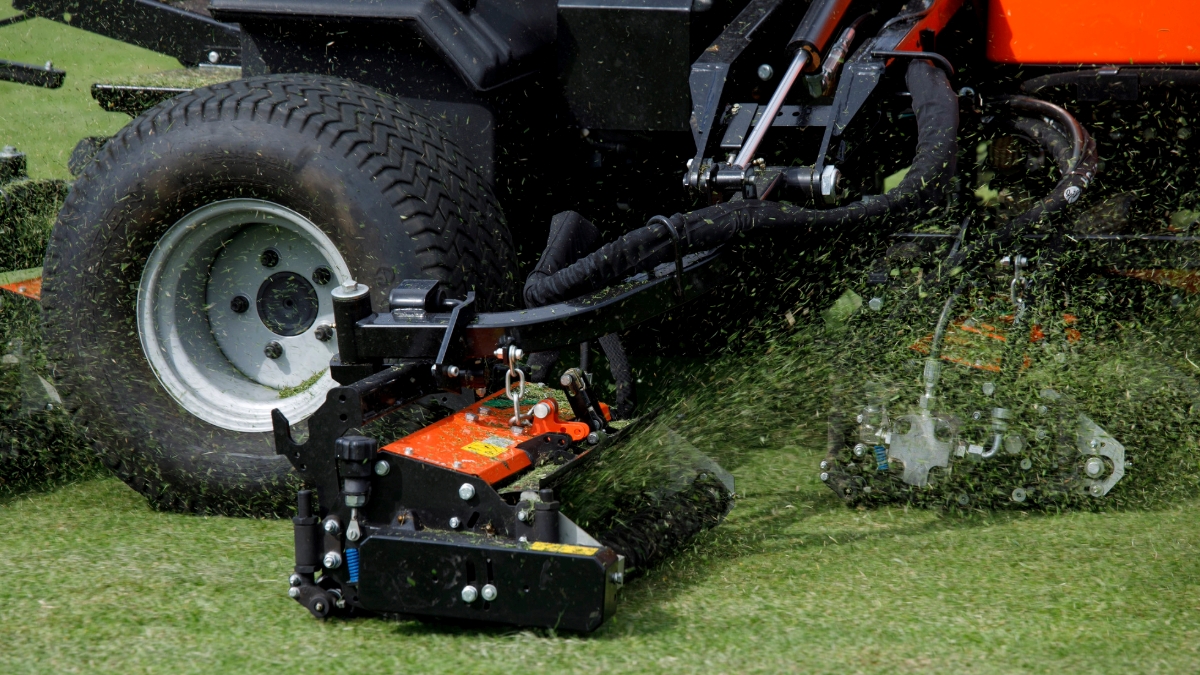

The powerful but precise F407 comes with 26” (66cm) front and rear clipping discharge units, and benefits from an improved radiator pack and hood which is optimized for increased airflow. The arm-rest mounted joystick control makes for simple and safe operation of all cutting unit lift and lower functions.
Learn More About the F407
Watch
Video
Key Features
Sheet
Huge Productivity With a High-Quality Finish
Robust Cutting Units With a Wide Height of Cut Range
Adaptable and Intuitive 5 or 7-Unit Operation
Powerful Kubota® Engine
Technical Specs
Choose a Section
Key Attributes
Reels and Blades
Traction, Brakes and Speed
Weight and Dimensions
Key Attributes
Reels and Blades
Traction, Brakes and Speed
Weight and Dimensions
| Mower Cutting Width | 158" (4 m) |
| Mower Height of Cut | 0.47 - 1.85" (12 - 47 mm) |
| Cutting Reels | 26" (66.5 cm) reels, 6.5" (16.5 cm) diameter floating head cutting unit with front and rear clipping discharge |
| Mower Engine | 46.5 HP (34.7 kW) Diesel |
| Cutting Capacity | 46/72 cuts per meter at 7.5 mph (12 kph) |
| Fuel/Battery Capacity (+Run Time) | 9.98 gal. (45.4 L) |
| Transport Speed | Selectable up to 8.7 mph (14 kph) |
| Mower Warranty | 2 Years |
| Number and Size | 7 or 11 blade cutting units, 46/72 cuts per meter at 7.5 mph (12 kph) |
| Blade Material | Hardened, high manganese carbon steel |
| Cutting Unit Lift | Wing units can be raised individually for transport or 5-unit operation |
| Traction Drive | SureTrac™ parallel-cross-series traction system with variable displacement hydrostatic drive; four high-torque wheel motors, 4WD in reverse. |
| Reel Drive | Fixed displacement hydraulic motors directly coupled to cutting unit |
| Hydraulic System | 8.31 gal. (37.8 L) capacity; Grade of oil to A.P.I. Classification CE/SF grades SAE 10W-30 |
| Service Brakes | Hydrostatic braking |
| Parking Brakes | Fail-safe electro-hydraulic wet brakes |
| Steering | Hydrostatic power steering with adjustable tilt steering wheel |
| Mowing Speed | Selectable up to 7.5 mph (12 kph) |
| Reverse Speed | Selectable up to 4 mph (6.4 kph) |
| Weight | 4149 lbs. (1882 kg) |
| Length (less catchers) | 116" (2.95 m) |
| Overall Height (including ROPS) | 84.6" (2.15 m) |
| Wheel Base | 87.7" (2.05 m) |
| Transport Width | 129.5" (3.29 m) |
| Working Width | 169.7" (4.31 m) |
