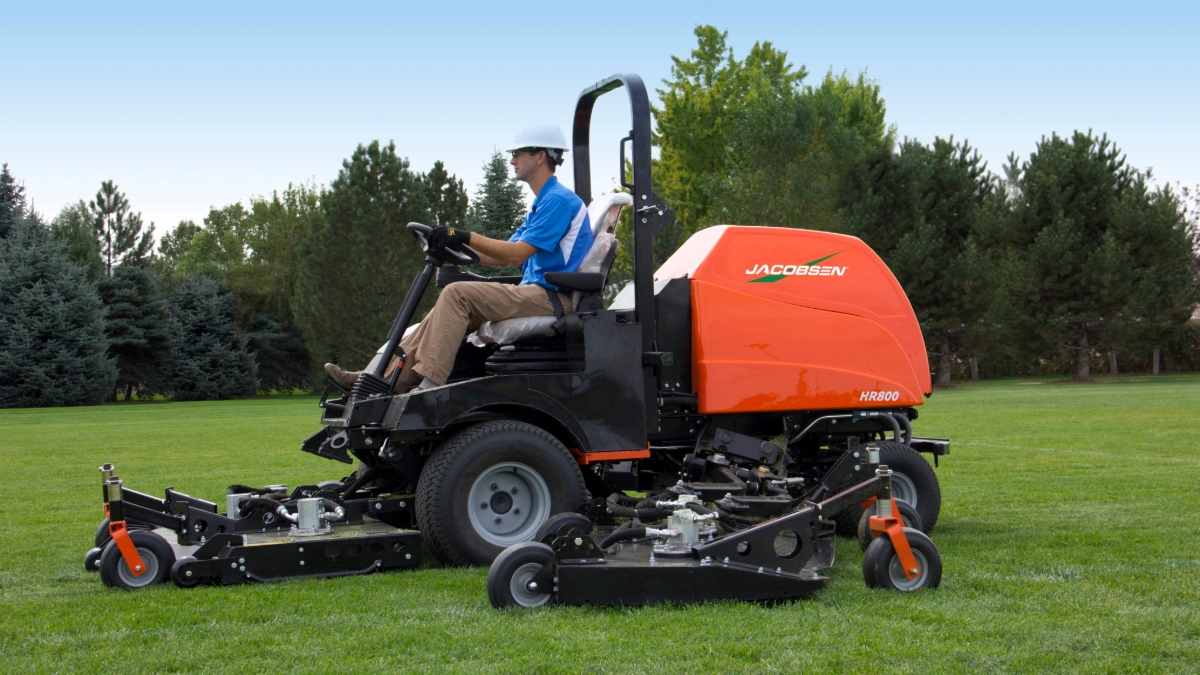

HR800

High Performance Large Area Rotary Mower
Jake's Take
Our Biggest Engine and Biggest Width of Cut

National parks, airports, military bases, and other large areas get covered quickly with the HR800. A 192" (4.9 m) cutting width is joined by onboard systems that ensure consistent professional mowing in the harshest conditions, while minimal required maintenance gets you on the job fast and keeps you there.

Technical Specs

Choose a Section
    Key Attributes
    Decks and Cutting Units
    Traction, Brakes and Speed
    Weight and Dimensions
Key Attributes
Decks and Cutting Units
Traction, Brakes and Speed
Weight and Dimensions
Mower Cutting Width192" (4.9 m)
Mower Height of Cut1 - 6" (25 - 152 mm) in 0.5" (12.7 mm) increments

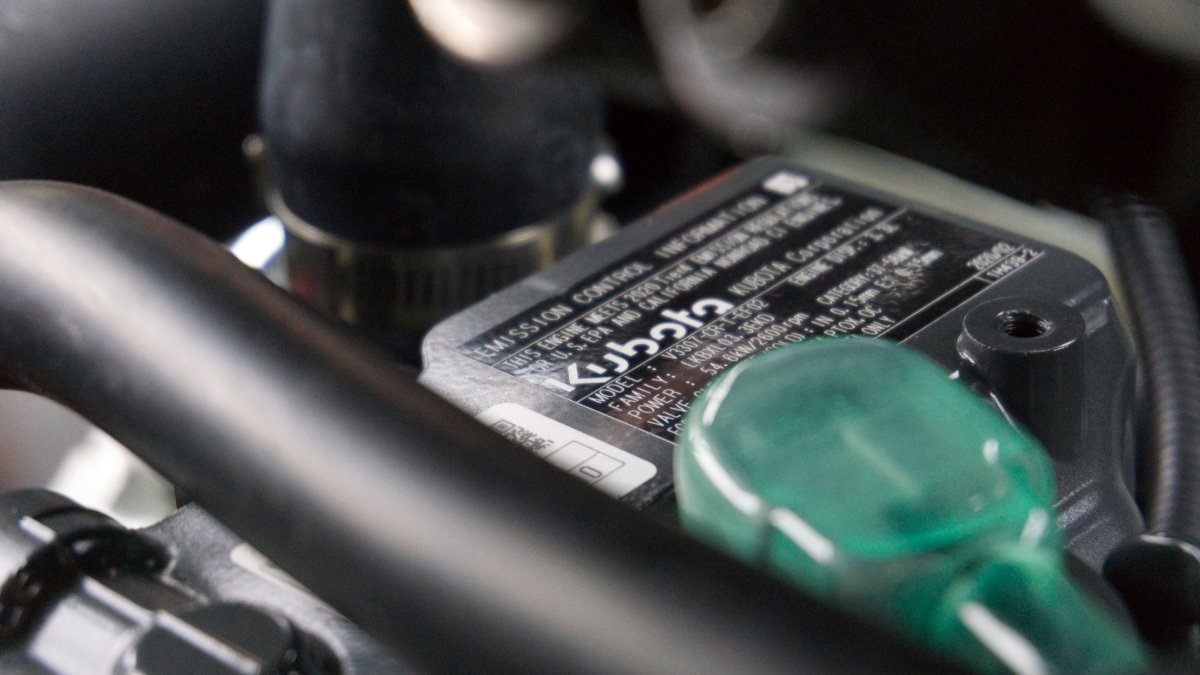

Mower EngineKubota 74.3 HP (55.4 kW) Turbo Diesel
Cutting Capacity21.3 acres/hr at 11 mph (8.62 ha/hr at 17.7 kph)
Transport Speed20 mph (32.2 kph)
Fuel/Battery Capacity (+Run Time)29.5 gal. (109.8 L)
Mower Warranty2 Years
Number and Size1 x 72" (1.83 m) front deck; 2 x 66" (1.68 m) wing units

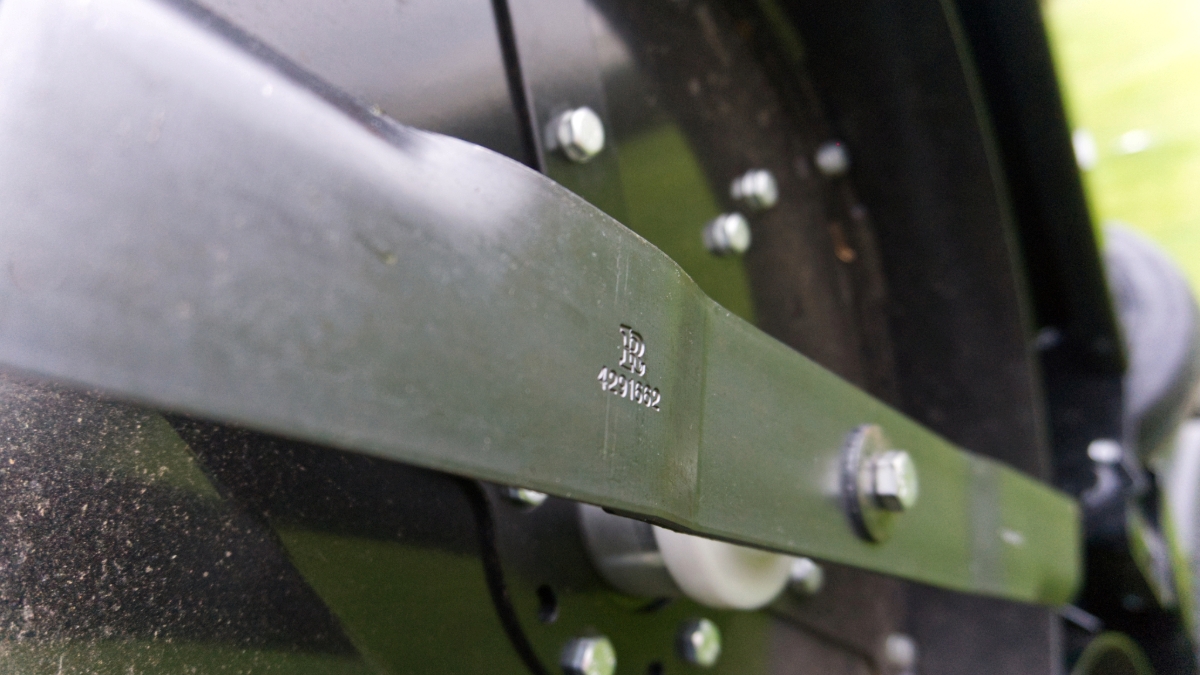

Blade MaterialMARBAIN® boron alloy steel
Deck Lift/LowerIndividual via fingertip operated joysticks
Weight TransferOn demand electrically operated hydraulic weight transfer system
Deck Construction11 gauge (3 mm) Strenx, high strength steel shell
Traction DriveHydrostatic closed loop parallel-cross-series SureTrac™ system
Deck DriveNine individual hydraulic motors with self lubricating integral bearings
Hydraulic System20.3 gal. (76.8 L) reservoir with 10 micron remote charge filters and suction screening at tank. Oil cooler in side by side radiator.
Service BrakesDynamic through hydrostatic traction system
Parking BrakesAutomatic wet parking brakes integrated into wheel motors
SteeringPower Steering
Mowing Speed11 mph (17.7 kph)
Reverse Speed 6 mph (9.6 kph)
TiresFront Tires :26.5 x 14-12 tubless 6 ply. Rear Tires :20 x 10-8 tubeless 8 ply
Weight4801 lbs. (2178 kg), 5370 lbs. (2436 kg) with cab
Length147" (3.66 m) front deck down
Height (Rops Up)85" (2.16 m)
Wheel Base67.4" (1.71 m)
Transport Width77" (1.96 m)
Working Width197" (5.00 m)
Fluid CapacitiesCoolant System and Capacity: Side-by-side radiator/hydraulic oil cooler; reversing fan; pressurized; 3.675 gal. (13.9 L) capacity, 8.5 fins per inch
Specifications, while correct at time of publishing, may change without notice. Available in ultra low sulfur diesel countries only. Cab optional.
